15" COLOR TFT LCD
UP TO 4 CASSETTES
MICROSOFT WINDOWS® 10
FEATURES
Absolute Reliability
The MX5600S is designed to provide second to none reliability in the market with the highest uptime (99.7% or higher) and optimized dispensing performance. It is equipped with the most reliable components including a higher capacity Cash Dispenser Unit, faster dispensing technology and robust system design and configuration against vandalism. The best in class dispensing technology of the MX5600S guarantees maximum availability and security.
Maximum Efficiency
The MX5600S is designed to maximize the efficiency of installation and operation with minimum maintenance needs. The remarkable compact footprint allows for simple manufacturing process, logistics, installation and maintenance with the smallest service clearance requirement. It is also an energy efficient solution with low energy LED lighting, low power consumption, less cabling and consumable usage. The MX5600S enables you to reduce the total cost of ownership and environmental impact.
Ultimately usability

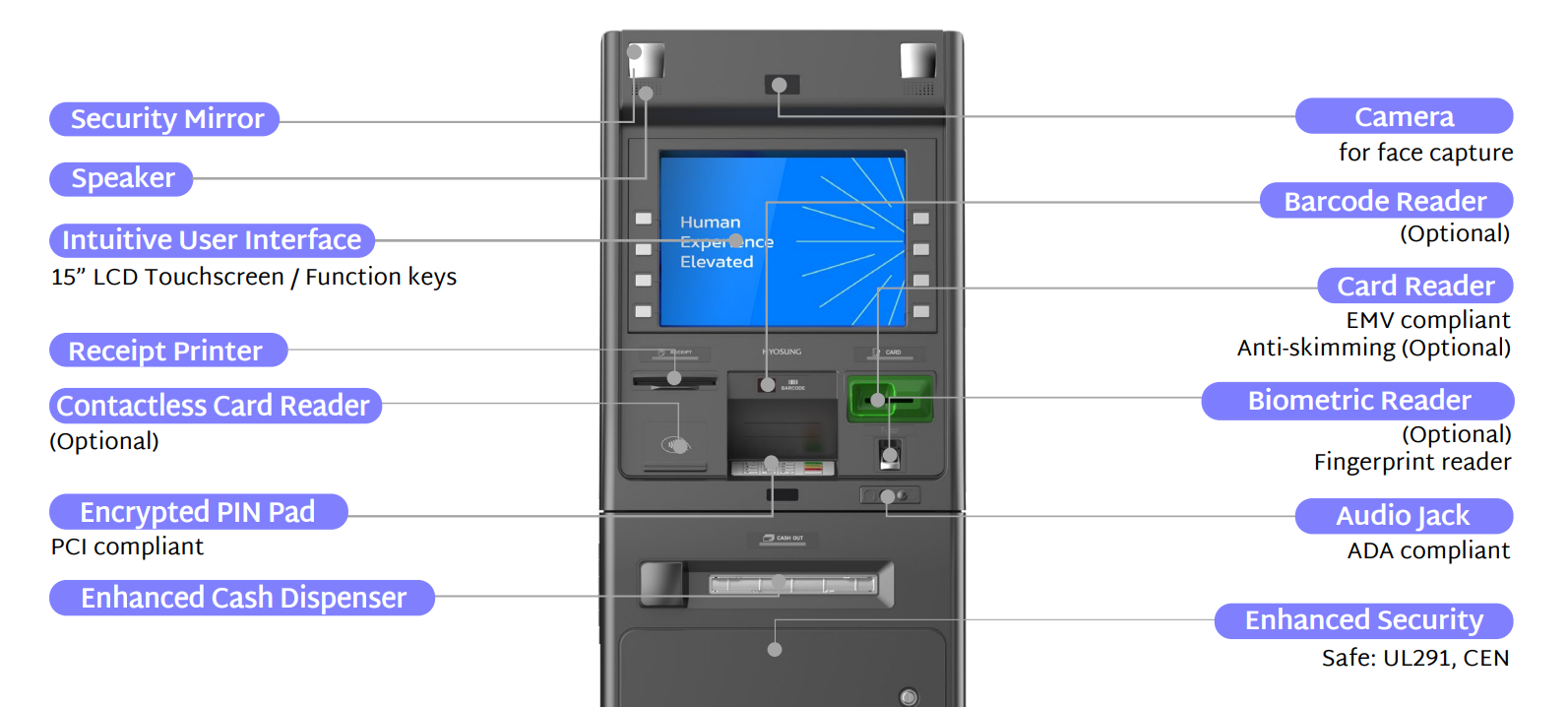

The MX5600S is intuitively designed to provide a seamless self-service experience for customers. The modern and sleek design with 15” touch screen attracts more customers and drives more interactions. It offers value-add functionalities featuring bill payment, funds transfer, mobile top-up in a highly user friendly interface as well as mobile-enabled cash transaction via contactless card reader for maximum convenience and easy transition.
Tech facts
- Height: 1,440mm (58.6“)
- Width: 428mm (18.1“)
- Depth: 840mm (33.1“)
- Weight: 350kg (771.6 lbs)
- Temperature 0°C – 40°C (32°F – 104°F)
- Humidity 25% – 86%
- Microsoft Windows® 10
- Hyosung BlueVerse™ XFS
- 15” display with touch screen
(Sunlight viewable optional) - 4 x 2 Function Keys (optional)
- Lead-through Indicator
- PIN Pad – PCI compliant
- Card Reader – EMV Ready (Dip, motorized)
- Contactless card reader
(Integrated NFC reader via card,
smartphone or smartwatch) - Audio – speaker / earphone jack
- Cash Dispenser
– Maximum fill level 346mm per cassette
– Configurable denomination
– Up to 4 cassettes
– Bundle present / retract
– Dispense up to 50 notes per transaction*
- Safe: UL291 Level 1 (CEN optional)
- Lock: Electronic lock,
Mechanical combination lock - Sensor: Alarm (Heat & Seismic),
Door sensor - Privacy filter
- Anti-skimming, Anti card trapping,
Anti-shimming, Anti cash trapping - Security camera (Face & Hand)
- Front access
- Receipt printer : graphical thermal
- Journal printer : e-Journal
- AC 100V~240V, 50/60Hz
- Backup battery
- Barcode reader
- Fingerprint reader
- Proximity sensor
